FIRE ALARM CABLE

Application

Fire alarm cable stranded copper conductor, XLPE insulated, cores laid up, PVC Inner sheathed, GI wire armoured & FRLS PVC outer sheath twin cable is used for powering firefighting equipment’s in hospital, schools, commercial complex & industries in fire security systems.

  • Voltage Rating : 600/1000 V, Operation Temperature, ax.: 90°C, Conductor temperature at
  • Short circuit : Max.: 250°C
  • Bending Radius : 12 x Overall diameter, Core Identification : Red & Black, Outer sheath colour: Red

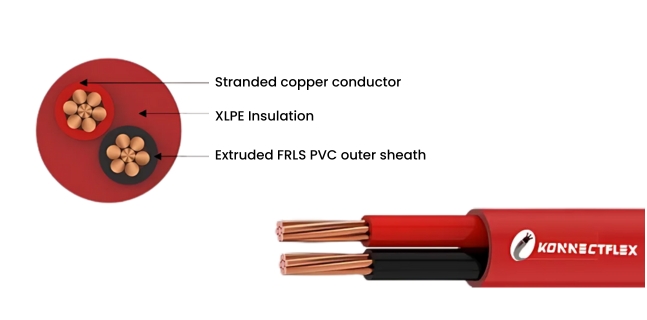

Construction

Stranded Class 2 Copper conductor, Insulated with XLPE type GP8, Sheathed with Extruded FRLS PVC

Construction

Stranded Class 2 Copper conductor, Insulated with XLPE type GP8, Sheathed with Extruded FRLS PVC

Application

Fire alarm signal cable stranded copper conductor, XLPE insulated, cores twisted, shielded & armoured cable is designed to use for conveying signal from fire/smoke sensor to the firefighting equipment panels in hospital, schools commercial complex & industries for security systems

Voltage Rating

500 V

Operation Temperature

Max.: XLPE 90°C

Bending Radius

12 x Overall diameter

Core Color

White & Blue

Outer sheath colour

Red

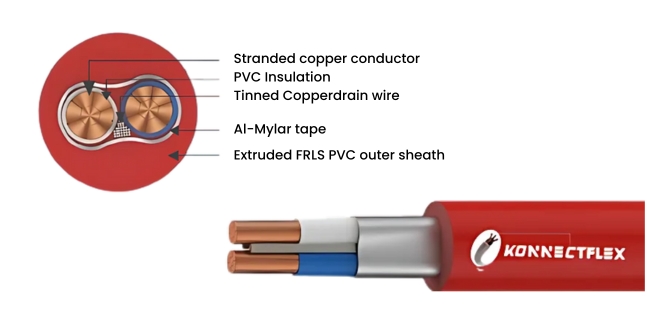

Construction

  • Stranded Class 2 Copper conductor
  • Insulated with XLPE
  • Collective screen Al/PET (Aluminium /Polyester tape) with drain wire of tinned Cu Sheathed with Extruded FRLS PVC

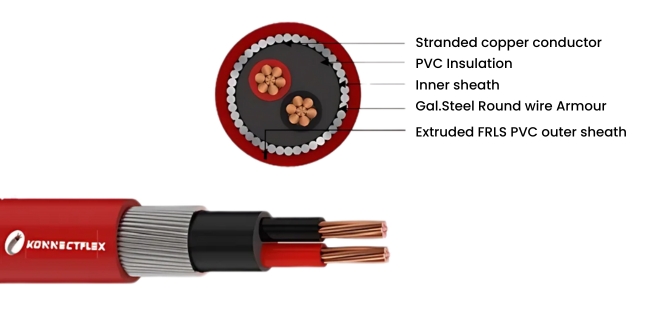

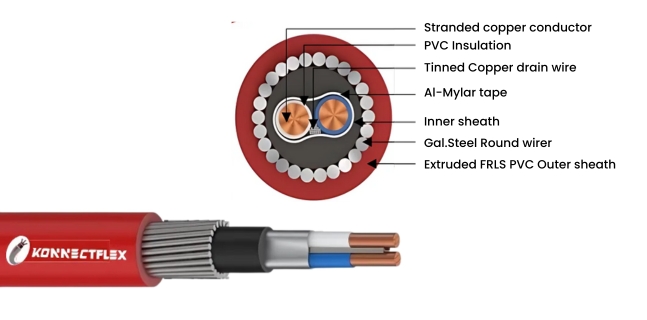

Construction

  • Stranded Class 2 Copper conductor
  • Insulated with PVC
  • Extruded inner sheath with PVC
  • Armoured with Galvanised Steel Round wire
  • Sheathed with Extruded FRLS PVC
  • Collective screen Al/PET (Aluminium /Polyester tape) with drain wire of tinned Cu

Technical Data:

  • Voltage Rating: 300/500V, Temperature Range:-30°C to + 70°C (The cable should not be flexed when either the ambient or cable temperature is below 0°C)
  • Conductor: High conductivity annealed plain stranded copper conductor produced in-house from state-of-the art machine.
  • nsulation: In-house developed XLPE insulation compound having high insulation properties.
  • Screen: Shielding type for twisted pair, Aluminium-Mylar tape with tinned copper drain wire. Drain wire will continuous contact with aluminum side of the tape
  • Inner Sheath: In-house developed thermoplastic compound having low emission of smoke and corrosive gases when exposed to fire and also ensures circular shape of cable.
  • Armour: Galvanised Steel Round/stripe wire Armoured to give mechanical protection.
  • Outer Sheath: In-house developed thermoplastic compound having low emission of smoke and corrosive gases when exposed to fire.
