NETWORK LAN CABLE

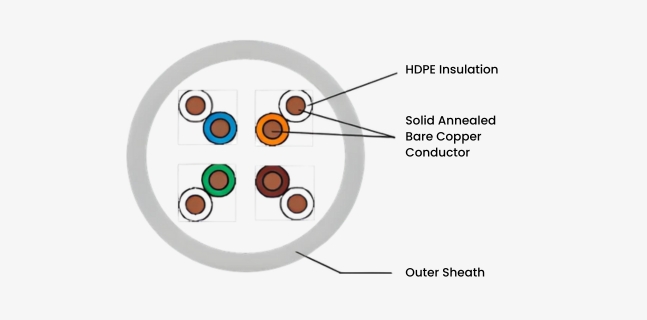

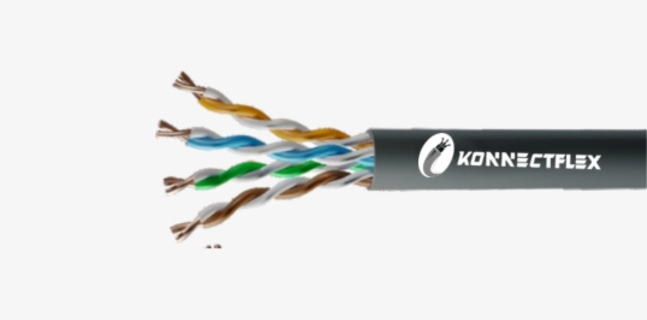

CAT5 & CAT5e CABLE

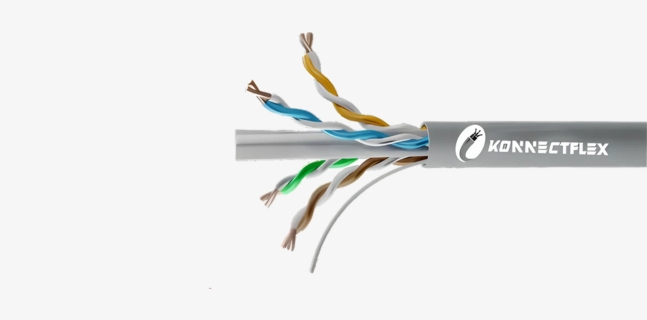

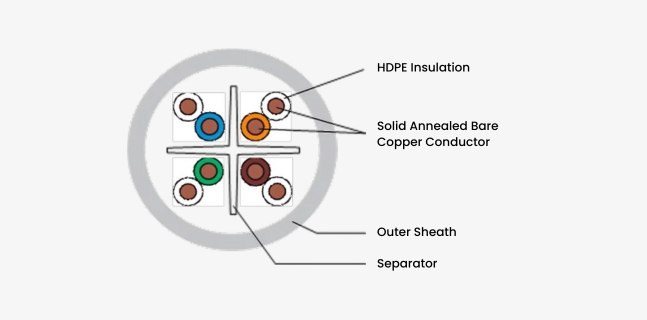

CAT6 & CAT6a CABLE

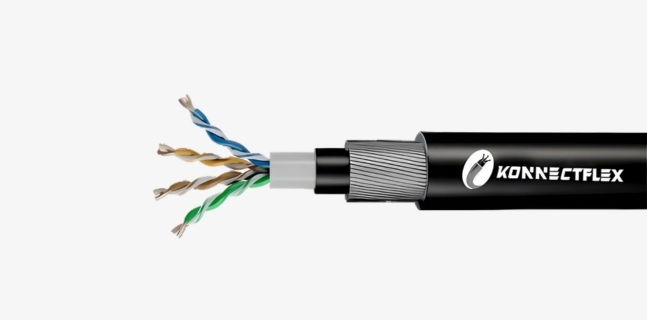

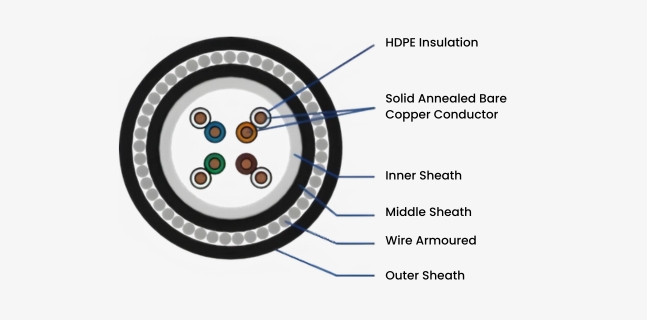

CAT6 & CAT6a ARMOURED CABLE

Construction:

  • Conductor: Annealed Bare Solid Copper Conductor 23 AWG & 24 AWG
  • Insulation: HDPE
  • Inner Sheath: PVC/HR-PVC/LSZH/FRL
  • Armour: Round GI Wire or Aluminium Wire
  • Options: Double Sheath for Outdoor/Wire Armoured / Aramid Yarn Strength/Water Blocking Tape
  • Separator: LDPE
  • Outer Sheath: PVC/HR-PVC/LSZH/FRLS
  • Type: Shielded or Unshielded

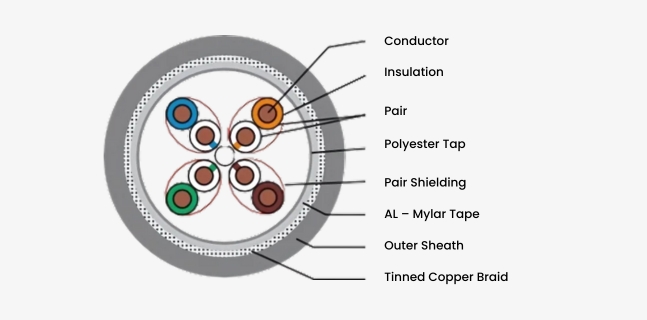

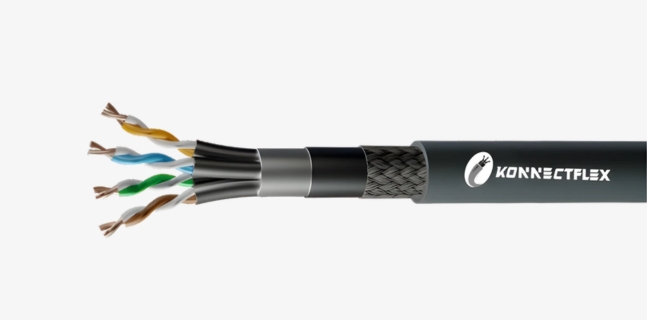

CAT7 CABLE

Construction:

  • Conductor: Annealed Bare Solid Copper Conductor 23 AWG & 24 AWG
  • Insulation: HDPE
  • Separator: LDPE
  • Sheath: PVC/HR-PVC/LSZH/FRLS
  • Type: Shielded and Braided
  • Shield: Aluminum Mylar (Foil) tape screen with tinned copper drain wire. Individual Shielding or Overall Shielding
  • Options: Double Sheath for Outdoor/Wire Armoured / Aramid Yarn Strength/Water Blocking Tape
  • Note: Customised Solutions available on request
Specs. Category 5 Category 5e Category 6 Category 6e Category 7
Cable Type UTP UTP OR STP UTP OR STP STP S/FTP
Max. Data Transmission Speed 10/100 Mbps 10/100/1000 Mbps 1000/10,000 Mbps 10,000 Mbps 10,000/40,000 Mbps
Max. Bandwidth 100 MHz 100 MHz 250 MHz 500 MHz 600 MHz
Distance 100 Mbps at 100 Mtrs 1 Gbps at 100 Mtrs 10 Gbps at 37-55 Mtrs
1 Gbps at 100 Mtrs		 10 Gbps at 100 Mtrs 10 Gbps at 100 Mtrs
40 Gbps at 50 Mtrs
Connector Type RJ45 (8P8C) RJ45 (8P8C) RJ45 (FOR CAT6) RJ45 (FOR CAT6A) GG45 OR TERA
Common Usage Phone Lines,
Home Network		 Phone Line,
Home Network, Office Network		 Phone Line, Home Network,
Office Network		 Office Network,
Data Centers		 Data Centers
