| Nominal area of conductor | Buried direct in the ground | In single way Ducts | In air | Max. DC conductor resistance at 20˚C |
|---|---|---|---|---|
| mm² | Amp | Amp | Amp | Ω/km |
| 16 | 74 | 61 | 69 | 1.91 |
| 25 | 95 | 79 | 93 | 1.20 |
| 35 | 114 | 94 | 114 | 0.868 |
| 50 | 134 | 112 | 138 | 0.641 |
| 70 | 164 | 137 | 175 | 0.443 |
| 95 | 197 | 164 | 216 | 0.320 |
| 120 | 223 | 187 | 249 | 0.253 |
| 150 | 249 | 209 | 284 | 0.206 |
| 185 | 282 | 238 | 329 | 0.164 |
| 240 | 327 | 276 | 392 | 0.125 |
| 300 | 369 | 312 | 452 | 0.100 |
| 400 | 420 | 356 | 526 | 0.0778 |
Application

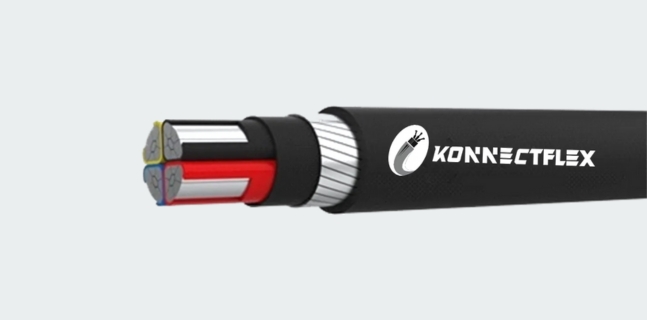

Stranded compacted aluminium conductor ,XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.
Bending Radius
Fixed installation | 12 x Overall diameter

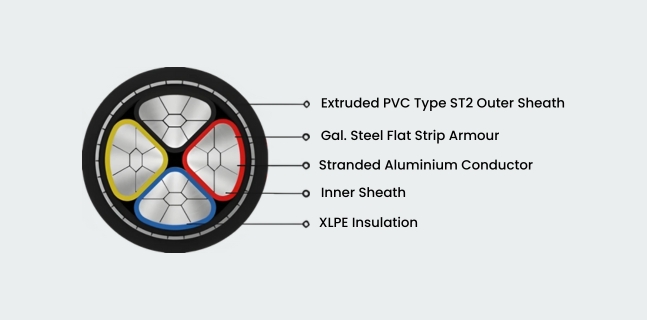

- Stranded plain compacted sector shaped copper conductor as per IS 8130, class 2
- Insulated with Cross Linked Polyethylene (XLPE) to IS 7098-1
- Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
- Armoured with Galvanised Flat Steel Strip to IS 3975
- Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH
Voltage Rating
650/1100 V
Operation Temperature
Max.: 90˚C
Short circuit temperature 250˚C
Core Identification
Red / Yellow / Blue / Black
