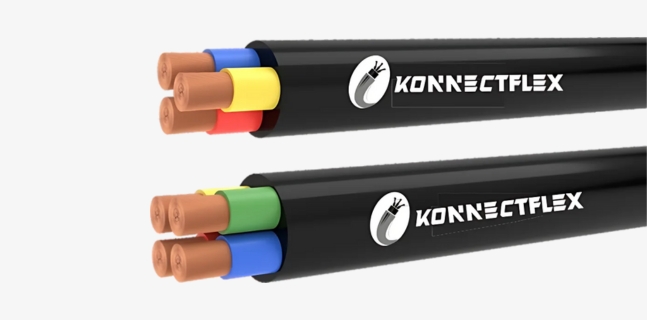

Manufacture and supply premium quality multi core flexible cables with copper The sheathing material provides resistance to oil, and moisture and superior mechanical strength without losing its flexibility. These cables can also be made available with FR-LSH & HFFR compound on request
Salient Features
- High Flexibility

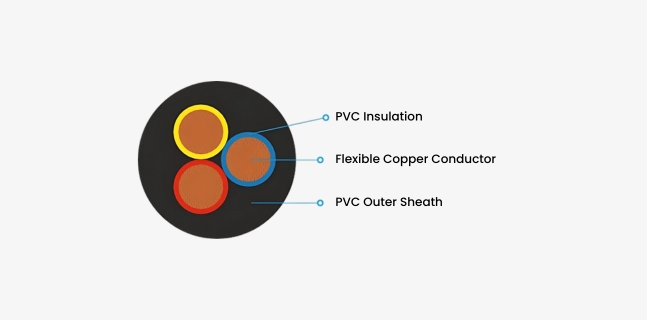

- Excellent resistant to moisture, abrasion, grace, oil Conductor
Insulation Sheath
- Flexible Bare or Tinned Bunch Copper
- PVC as per IS:5831-1984
- PVC as per IS:5831-1984
- Long Life Excellent mechanical & electrical properties
Technical Data:
- Working Temp: Max.+70°C
- Nominal Voltage: 1.1 KV
- Test Voltage: 3.0 KV
- Min Bending radius: 6 x Cable Diameter
Core Colour
- As per IS 694 : 2010
- Core – Red & Black
- Core – Red, Black, Green or Red, Yellow and Blue
- Core - Red, Yellow, Blue and Green or Black
| Conductor | Insulation | Thicknessof Sheathand Diameter | Conductor | Current | |||||
|---|---|---|---|---|---|---|---|---|---|
| Size of Cable | No. of Wire/Size of Wire | Thickness (Nominal) | CoreOD | Sheath
Thicknes (Nominal) |
2 Core Outer Diameter | 3 Core Outer Diameter | 4 Core Outer Diameter | Resistance at 20°C (max) | Rating At Ambient Temperature |
| Sq.mm | Nos.mm | mm | mm | mm | mm | mm | mm | Ω/km | Amps |
| 0.50 | 16/0.20 | 0.60 | 2.05 | 0.90 | 5.60 | 6.0 | 6.40 | 39.0 | 4 |
| 0.75 | 24/0.20 | 0.60 | 2.30 | 0.90 | 6.0 | 6.80 | 7.20 | 26.0 | 7 |
| 1.0 | 32/0.20 | 0.60 | 2.50 | 0.90 | 6.80 | 7.0 | 8.0 | 19.50 | 11 |
| 1.5 | 30/0.25 | 0.60 | 2.90 | 0.90 | 7.80 | 8.0 | 9.20 | 13.30 | 14 |
| 2.5 | 50/0.25 | 0.70 | 3.50 | 1.0 | 9.20 | 9.50 | 11.10 | 7.98 | 18 |
| 4.0 | 56/0.30 | 0.80 | 4.0 | 1.10 | 10.60 | 11.60 | 12.50 | 4.95 | 24 |
| 6.0 | 84/0.30 | 0.80 | 5.0 | 1.10 | 13.0 | 13.80 | 15.0 | 3.30 | 31 |
| 10.0 | 140/0.30 | 1.0 | 6.0 | 2.0 | 18.0 | 19.0 | 20.20 | 1.91 | 52 |
| 16.0 | 224/0.30 | 1.0 | 7.30 | 2.0 | 20.0 | 21.50 | 23.50 | 1.21 | 70 |
| 25.0 | 350/0.30 | 1.2 | 9.50 | 2.30 | 24.0 | 26.0 | 28.0 | 0.780 | 88 |
| 35.0 | 490/0.30 | 1.2 | 11.0 | 2.50 | 27.0 | 29.0 | 31.50 | 0.554 | 112 |
| 50.0 | 700/0.30 | 1.4 | 13.0 | 2.80 | 30.0 | 34.0 | 37.0 | 0.386 | 146 |
| 70.0 | 980/0.30 | 1.4 | 15.0 | 3.10 | 35.0 | 38.0 | 42.2 | 0.272 | 216 |
| 95.0 | 1330/0.30 | 1.6 | 18.0 | 4.0 | 42.0 | 44.50 | 48.8 | 0.206 | 262 |
