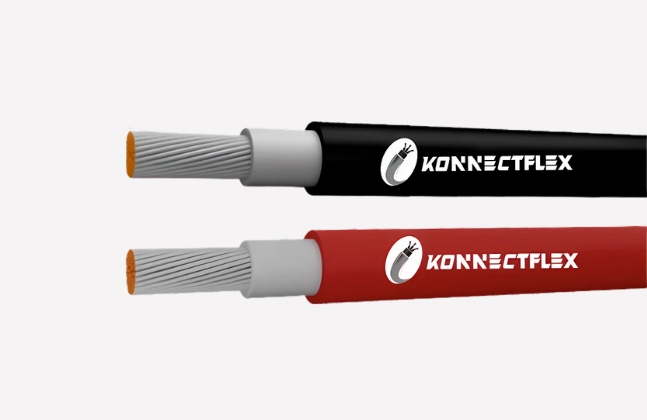

SOLAR CABLE

Application

For Solar Panel, Solar Power Plant, Solar Pump Installation

Standard Packing :

Coils 100, 200,300, 500, 1000m

Conductor :

Flexible Electrolytic fine Tinned copper class-5 conductor according

Insulation: XLPO Crosslinked Halogen Free

Electrical Characteristics:

  • Rated Voltage : 0.6/1 kV AC /
  • Rated DC Voltage : 1.5 kV
  • Maximum Permitted DC Voltage : 1.8 kV (conductor/conductor earthing system, circuit not under load)
  • Maximum Permitted AC Voltage : 1 KV
  • Working Voltage : DC 1000 V
  • Spark Test : 6000 V. ac (8400 Vdc)
  • Voltage Withstand : 6500 V as per EN50395 for 5 min
  • Ampacity :According to requirements for cables for PV systems
