Technical Data:
- Working Temp: Max.+70°C
- Nominal Voltage: 1.1 KV
- Test Voltage: 3.0 KV
- Min Bending radius: 6 x Cable Diameter
Salient Features
- Excellent flexibility
- Excellent resistant to moisture, abrasion,grease, oil
- Long Life
- Excellent mechanical & electrical properties
Cable Standard
IS 694:2010, BS 6500, IEC 60227
Standard Packing
Coils 100, 200,300, 500, 1000m

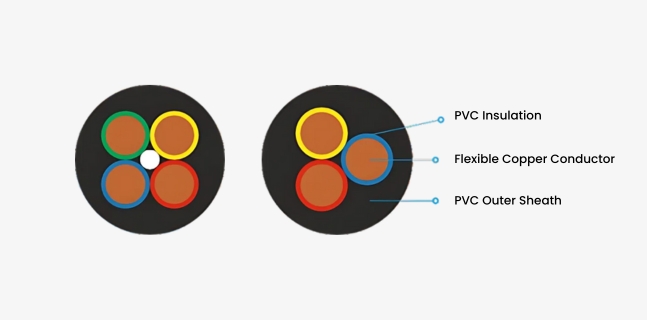

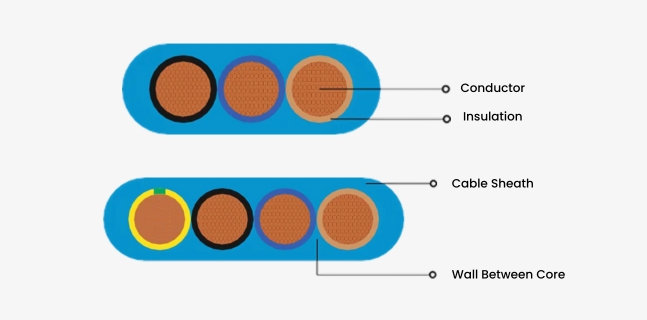

Conductor
Flexible Bare Bunch Copper
Insulation
PVC / XLPE / EPR RUBBER
Outer Sheath
PVC / EPR RUBBER
Application
Ideal For Irrigation Pumps, Drinking Water Supply Pumps, Submersible Pump Motor Power Supply
| Conductor | Insulation | Sheath | Conductor | Current | ||||
|---|---|---|---|---|---|---|---|---|
| Size of Cable | No. of Wire/Size of Wire | Thickness | CoreOD | Thickness | 3 Core Overall Size | 4 Core Overall Size | Resistance at 20°C (max) | Rating At Ambient Temperature |
| Sq.mm | Nos.mm | Nos.mm | mm | mm | mm | mm | Ω/km | Amps |
| 1.0 | 14/0.30 | 0.60 | 2.60 | 0.90 | 9.90 x 4.70 | 12.50 x 4.80 | 18.1 | 11 |
| 1.5 | 22/0.30 | 0.60 | 2.80 | 0.90 | 10.50 x 4.80 | 14.20 x 5.10 | 12.1 | 14 |
| 2.5 | 36/0.30 | 0.70 | 3.35 | 1.00 | 12.60 x 5.90 | 17.50 x 7.00 | 7.41 | 18 |
| 4.0 | 56/0.30 | 0.80 | 4.00 | 1.00 | 14.50 x 6.70 | 20.0 x 7.70 | 4.95 | 26 |
| 6.0 | 84/0.30 | 0.80 | 4.90 | 1.10 | 17.50 x 7.90 | 23.50 x 9.00 | 3.30 | 31 |
| 10.0 | 140/0.30 | 1.00 | 6.50 | 1.40 | 22.80 x 9.90 | 29.90 x 9.90 | 1.91 | 52 |
| 16.0 | 140/0.40 | 1.00 | 7.40 | 1.50 | 28.20 x 11.40 | 37.10 x 11.40 | 1.21 | 70 |
| 25.0 | 350/0.30 | 1.20 | 10.0 | 2.00 | 24.50 x 14.80 | 45.0 x 14.70 | 0.780 | 88 |
| 35.0 | 500/0.30 | 1.20 | 11.50 | 2.00 | 33.50 x 17.80 | 52.50 x 17.80 | 0.554 | 112 |
| 50.0 | 700/0.30 | 1.40 | 13.50 | 2.20 | 46.0 x 20.50 | 58.0 x 20.30 | 0.386 | 146 |
| 70.0 | 980/0.30 | 1.40 | 15.3 | 2.30 | 53.0 x 23.0 | 66.5 x 20.0 | 0.272 | 190 |
| 95.0 | 1330/0.30 | 1.60 | 18.0 | 2.40 | 60.0 x 28.0 | 77.3 x 23.50 | 0.206 | 225 |
