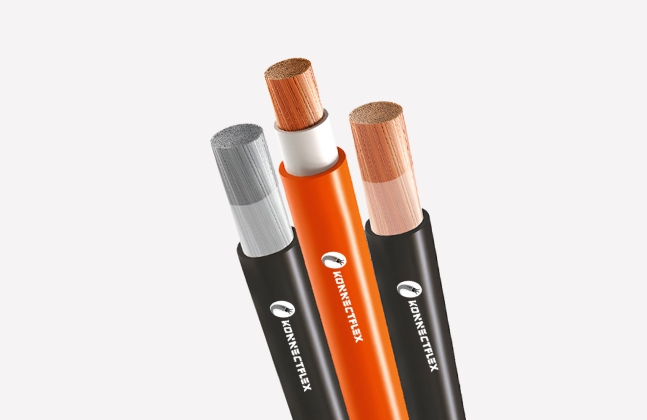

WELDING CABLE

Application

Designed for the secondary (high current) connection to automatic or hand - held metal arc welding electrodes. It is suitable for flexible use under rugged conditions, on assembly lines & conveyor systems, in machine tool and automatically operated line & spot welding machines

Conductor

conductivity, bare annealed copper flexible conductor, EC copper class 5 & class 6 generally conforms

Salient Features

Ultra-high performance flexible welding lead, double insulated for longer life and added safety / Better flame retardant properties / Outstanding toughness & durability / High resistance to cuts, tears & abrasion / Resistance to oil, solvents and chemicals / Excellent ozone and weather resistant

Technical Data:

  • Fixed Installation : -20°C to max.+90°C
  • Nominal Voltage : 600 V
  • Spark Test : 3.5 KV(ac)
  • Min. Bending Radius : 6 x Cable Diameter
