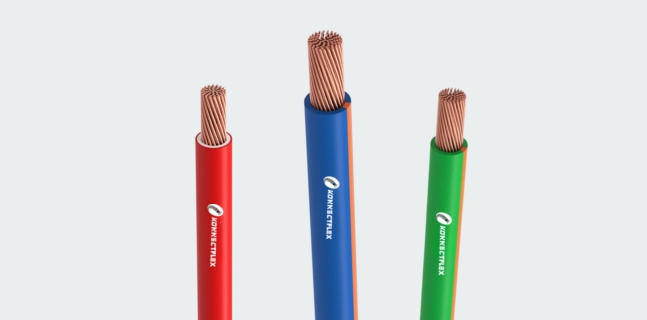

Wires - Building/Panel/Earthing

Salient Features (FR/FRLS/HRFR/ZHFR)

  • Good Flame Retardant Properties
  • Excellent Resistant to Moisture, Abrasion, Grace, Oil
  • Long Life
  • Excellent mechanical & electrical properties
  • Steam and boiling water resistant
  • Zero Halogen acid gas Evolution
  • Non corrosive and non toxic insulation
  • High temperature resistant insulation
  • Better Flame retardant property
  • Special heat resistant insulation
  • Higher current carrying capacity
  • Fine copper wires
  • Highly thermal stable insulation
  • High electrical conductivity

Technical Data:

  • Operating Temp : -10°C to max.+90°C
  • Nominal voltage : 1.1 KV
  • Test voltage : 3.0 KV
  • Flame propagation : Flame retardant test

Standard Packing:

Coils 90m, 180m and 360m / Coils 100, 200, 500 and 1000m

Size of Wire No. of Wire / Size of Wire Insulation Thickness OD Max Conductor Resistance at 20°C Current Rating at Ambient Temp
sq. mm Nos/mm (Nom inal)m m mm Ω/km Amps
0.50 16/0.20 0.6 1.90 39 4
0.75 24/0.20 0.6 2.20 26 8
1.0 14/0.30 0.6 2.40 19.5 11
1.5 22/0.30 0.6 2.80 13.3 14
2.5 36/0.30 0.7 3.30 7.98 18
4.0 56/0.30 0.8 3.80 4.95 24
6.0 84/0.30 0.8 4.30 3.3 31
10.0 140/0.30 1.0 6.00 1.91 52
16.0 224/0.30 1.0 7.00 1.21 75
25.0 350/0.30 1.2 9.50 0.78 88
35.0 490/0.30 1.2 11.00 0.554 112
50.0 703/0.30 1.4 13.00 0.386 146
70.0 988/0.30 1.4 14.50 0.272 182
95.0 1349/0.30 1.6 17.50 0.206 225
120.0 1608/0.30 1.8 19.00 0.161 262
150.0 767/0.50 1.8 21.00 0.129 352
185.0 943/0.50 2.0 23.50 0.106 410
240.0 1223/0.50 2.2 26.50 0.081 475
300.0 1525/0.50 2.4 29.50 0.064 550
400.0 2035/0.50 2.6 33.50 0.0486 670
500.0 2535/0.50 2.8 37.50 0.0384 750
630.0 3219/0.50 2.8 42.00 0.0287 875
